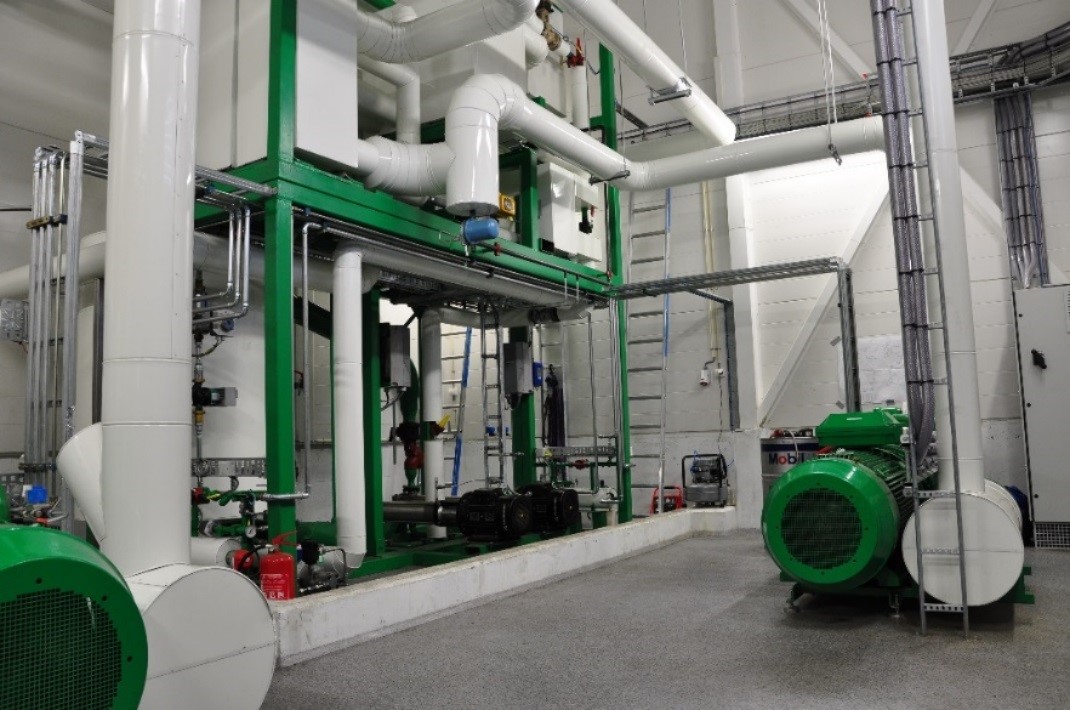

The HyPAC-R

The HyPAC-R is a two stage Hybrid Heat Pump, each unit delivering up towards 2MW. It requires a heat source of between 50-65°C (typically from a standard 25 or 40 bar ammonia heat pump) and delivers 95-120°C (Max. total lift 90K).



The HyPAC-R uses the latest in reciprocating compressor technology, and top of the line components from quality suppliers like Alfa Laval, Grundfos, Danfoss, Siemens etc.

Typical applications are:



–  Drying processes (feed production)

–  High temperature dairy processes

–  Any process requiring higher temperature boost

Performance data:



Source Temperature Range: 40 – 60°C

Output Temperature Range: 80 – 120°C

Output Effect Range:  750 – 2000kW

COP Range: 3,5 – 6
