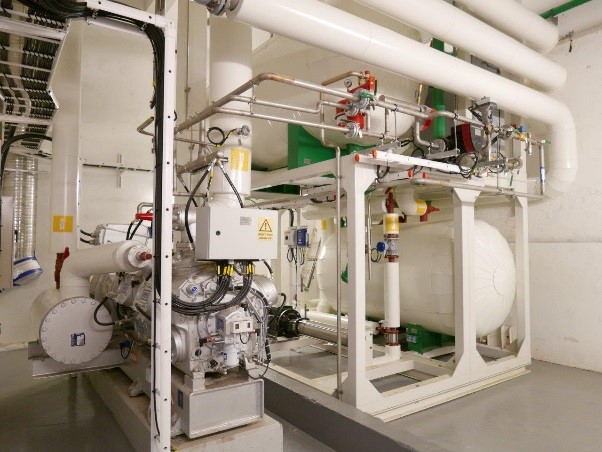

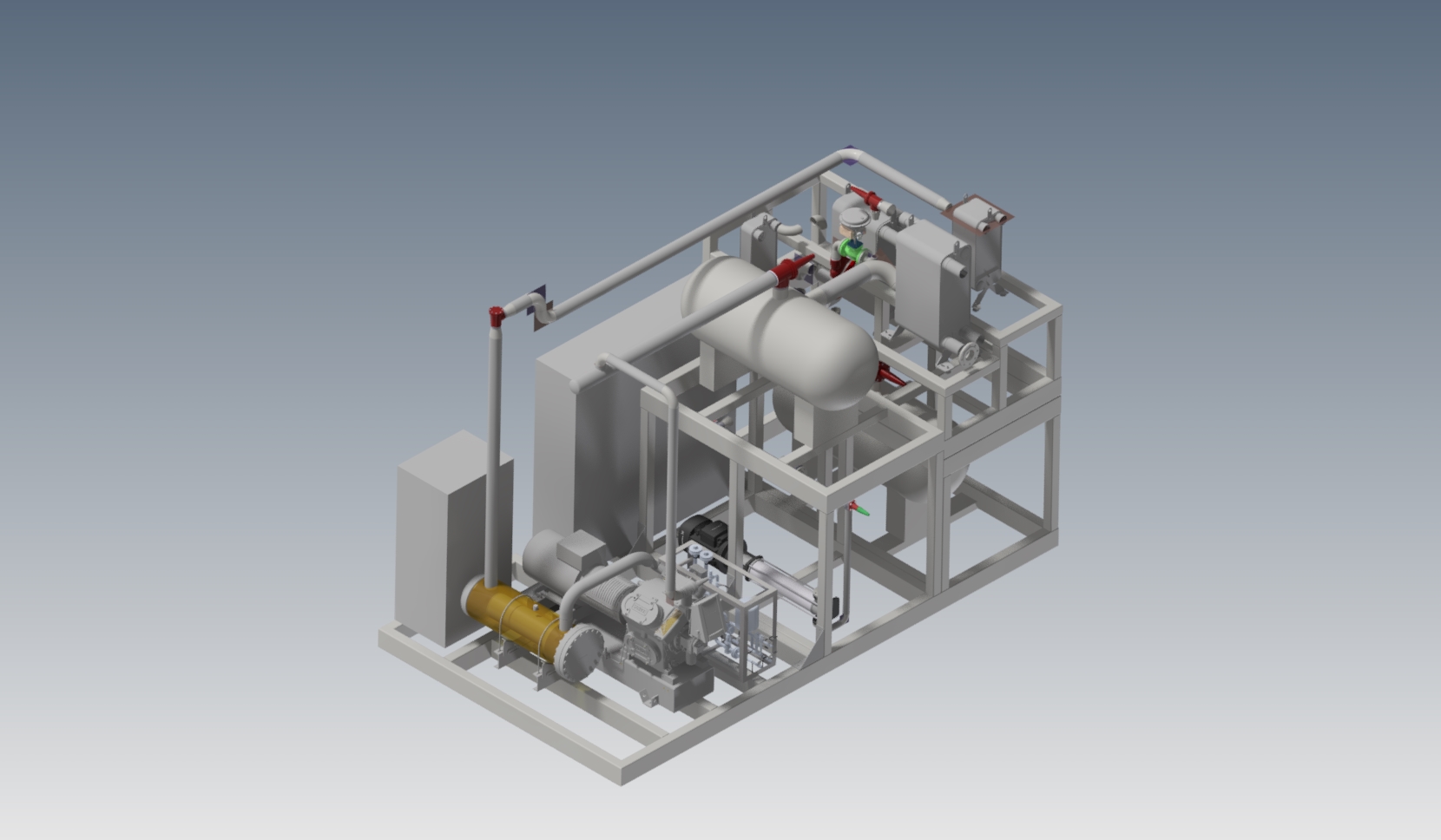

The GreenPAC-R

The GreenPAC-R is a single stage Hybrid Heat Pump, each unit delivering up towards 2MW. It requires a heat source of between 50-65°C (typically from a standard 25 or 40 bar ammonia heat pump) and delivers 90-100°C.



The GreenPAC-R uses the latest in reciprocating compressor technology, and top of the line components from quality suppliers like Alfa Laval, Grundfos, Danfoss, Siemens etc.

Typical applications are:



–  Slaughterhouses (washing, sterilization)

–  Regular dairy processes (washing, pasteurization, CIP)

–  Bio gas upgrading

–  Any process requiring moderate temperature boost

Performance data:



Source Temperature Range: 40 – 60°C

Output Temperature Range: 80 – 100°C

Output Effect Range:  500 – 2000kW

COP Range: 5 – 8
